Apex(Terraform)로 API Gateway 구성하기 #2
이 글은 Apex(Terraform)로 API Gateway 구성하기 #1에서 이어진 글이다.
API Gateway 로깅
API Gateway가 안되는 이유를 보려면 API Gateway에서 발생한 오류를 로그로 남겨서 봐야 한다. API Gateway에는 오류를 보는 기능이 없으므로 확인하는 CloudWatch에 오류를 남길 수 있도록 설정해야 한다.

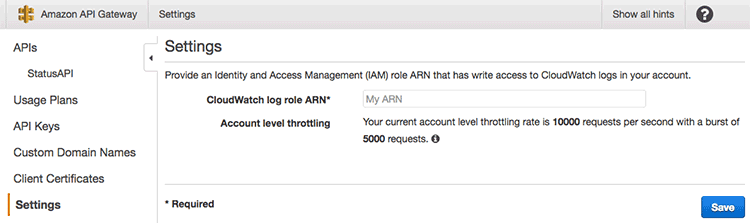

API Gateway에서는 리전 내 전체 설정에서 CloudWatch에 로그를 남길 수 있는 권한이 있는 role의 ARN을 설정해 놓고 각 API의 리소스나 메서드에서 이 role을 사용해서 로깅을 키거나 끌 수 있다. 이 설정은 특정 Lambda에 종속 된 것이 아니므로 별도의 파일 cloudwatch.tf로 분리했다.
1// infrastructure/cloudwatch.tf
2
3// cloudwatch를 사용할 policy
4data "aws_iam_policy_document" "allow_log_to_cloudwatch" {
5 statement {
6 actions = [
7 "logs:CreateLogGroup",
8 "logs:CreateLogStream",
9 "logs:DescribeLogGroups",
10 "logs:DescribeLogStreams",
11 "logs:PutLogEvents",
12 "logs:GetLogEvents",
13 "logs:FilterLogEvents"
14 ]
15 resources = [
16 "*",
17 ]
18 }
19}
20
21resource "aws_iam_role_policy" "allow_log_to_cloudwatch" {
22 name = "allow_log_to_cloudwatch"
23 role = "${aws_iam_role.api_gateway_cloudwatch.id}"
24 policy = "${data.aws_iam_policy_document.allow_log_to_cloudwatch.json}"
25}
26
27// cloudwatch를 사용할 role
28data "aws_iam_policy_document" "allow_log_to_cloudwatch_from_apigateway" {
29 statement {
30 actions = ["sts:AssumeRole"]
31
32 principals {
33 type = "Service"
34 identifiers = ["apigateway.amazonaws.com"]
35 }
36 }
37}
38
39resource "aws_iam_role" "api_gateway_cloudwatch" {
40 name = "api_gateway_cloudwatch"
41 assume_role_policy = "${data.aws_iam_policy_document.allow_log_to_cloudwatch_from_apigateway.json}"
42}
43
44// 로깅을 위한 CloudWatch 설정
45resource "aws_api_gateway_account" "api_gateway_account" {
46 cloudwatch_role_arn = "${aws_iam_role.api_gateway_cloudwatch.arn}"
47}
여기서는 IAM에서 policy를 하나 만들고 role을 하나 만들어서 policy에 연결한 후에 API Gateway에 설정한 것이다. aws_iam_policy_document.allow_log_to_cloudwatch에서 정책 규칙을 정의해서 aws_iam_role_policy로 새로운 policy를 만들고 aws_iam_policy_document.allow_log_to_cloudwatch_from_apigateway에서 role의 규칙을 만든 후 aws_iam_role에서 role을 만들고 이 role을 policy와 연결했다. 그리고 이렇게 생성한 role의 ARN은 aws_api_gateway_account에서 설정했다.
이를 적용해보자.
1$ apex infra plan
2
3+ aws_api_gateway_account.api_gateway_account
4 cloudwatch_role_arn: "${aws_iam_role.api_gateway_cloudwatch.arn}"
5 throttle_settings.#: "<computed>"
6
7-/+ aws_api_gateway_deployment.status_api_test
8 created_date: "2017-05-07T17:22:22Z" => "<computed>"
9 description: "Deployed at 2017-05-07T17:22:22Z" => "Deployed at 2017-05-07T17:36:36Z"
10 execution_arn: "arn:aws:execute-api:ap-northeast-1:410000000000:1w03z7dzmi/test" => "<computed>"
11 invoke_url: "https://1w03z7dzmi.execute-api.ap-northeast-1.amazonaws.com/test" => "<computed>"
12 rest_api_id: "1w03z7dzmi" => "1w03z7dzmi"
13 stage_description: "2017-05-07T17:22:22Z" => "2017-05-07T17:36:36Z" (forces new resource)
14 stage_name: "test" => "test"
15
16+ aws_iam_role.api_gateway_cloudwatch
17 arn: "<computed>"
18 assume_role_policy: "{\n \"Version\": \"2012-10-17\",\n \"Statement\": [\n {\n \"Sid\": \"\",\n \"Effect\": \"Allow\",\n \"Action\": \"sts:AssumeRole\",\n \"Principal\": {\n \"Service\": \"apigateway.amazonaws.com\"\n }\n }\n ]\n}"
19 create_date: "<computed>"
20 name: "api_gateway_cloudwatch"
21 path: "/"
22 unique_id: "<computed>"
23
24+ aws_iam_role_policy.allow_log_to_cloudwatch
25 name: "allow_log_to_cloudwatch"
26 policy: "{\n \"Version\": \"2012-10-17\",\n \"Statement\": [\n {\n \"Sid\": \"\",\n \"Effect\": \"Allow\",\n \"Action\": [\n \"logs:PutLogEvents\",\n \"logs:GetLogEvents\",\n \"logs:FilterLogEvents\",\n \"logs:DescribeLogStreams\",\n \"logs:DescribeLogGroups\",\n \"logs:CreateLogStream\",\n \"logs:CreateLogGroup\"\n ],\n \"Resource\": \"*\"\n }\n ]\n}"
27 role: "${aws_iam_role.api_gateway_cloudwatch.id}"
28
29-/+ aws_lambda_permission.status_api_resource_check_post
30 action: "lambda:InvokeFunction" => "lambda:InvokeFunction"
31 function_name: "github-status_github-status" => "github-status_github-status"
32 principal: "apigateway.amazonaws.com" => "apigateway.amazonaws.com"
33 source_arn: "arn:aws:execute-api:ap-northeast-1:410000000000:1w03z7dzmi/test/POST/check" => "${aws_api_gateway_deployment.status_api_test.execution_arn}/${aws_api_gateway_integration.status_api_resource_check_post.integration_http_method}${aws_api_gateway_resource.status_api_resource_check.path}" (forces new resource)
34 statement_id: "AllowInvokeFromAPIGateway" => "AllowInvokeFromAPIGateway"
35
36
37Plan: 5 to add, 0 to change, 2 to destroy.

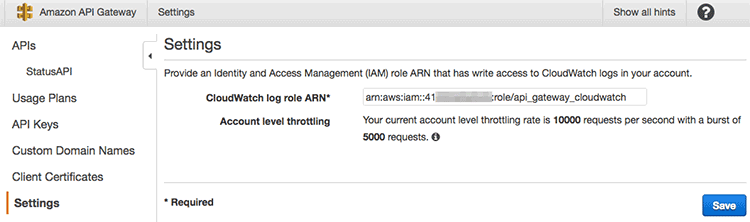

API Gateway의 설정 화면에 들어가면 ARN이 잘 설정된 것을 볼 수 있다.
이제 API에 로깅을 활성화 해야 한다.
1// infrastructure/github-status.tf
2
3// API 메서드 설정
4resource "aws_api_gateway_method_settings" "status_api_resource_check_post" {
5 rest_api_id = "${aws_api_gateway_rest_api.status_api.id}"
6 stage_name = "${aws_api_gateway_deployment.status_api_test.stage_name}"
7 method_path = "${aws_api_gateway_resource.status_api_resource_check.path_part}/${aws_api_gateway_method.status_api_resource_check_post.http_method}"
8
9 settings {
10 metrics_enabled = true
11 logging_level = "INFO"
12 }
13}
이는 aws_api_gateway_method_settings를 사용하는데 메서드 레벨에서 로깅 등을 활성화할 수 있다. 웹 콘솔에서는 스테이지 단위에서 설정을 한 후 다른 리소스나 메서드에서는 이 설정을 상속받는데 Terraform에서는 그런 방법을 못 찾았고 위처럼 스테이지와 메서드를 지정하고 로깅 등을 설정할 수 있다.
1$ apex infra plan
2
3-/+ aws_api_gateway_deployment.status_api_test
4 created_date: "2017-05-07T17:42:26Z" => "<computed>"
5 description: "Deployed at 2017-05-07T17:42:25Z" => "Deployed at 2017-05-07T17:46:07Z"
6 execution_arn: "arn:aws:execute-api:ap-northeast-1:410000000000:1w03z7dzmi/test" => "<computed>"
7 invoke_url: "https://1w03z7dzmi.execute-api.ap-northeast-1.amazonaws.com/test" => "<computed>"
8 rest_api_id: "1w03z7dzmi" => "1w03z7dzmi"
9 stage_description: "2017-05-07T17:42:25Z" => "2017-05-07T17:46:07Z" (forces new resource)
10 stage_name: "test" => "test"
11
12+ aws_api_gateway_method_settings.status_api_resource_check_post
13 method_path: "check/POST"
14 rest_api_id: "1w03z7dzmi"
15 settings.#: "1"
16 settings.0.logging_level: "INFO"
17 settings.0.metrics_enabled: "true"
18 stage_name: "test"
19
20-/+ aws_lambda_permission.status_api_resource_check_post
21 action: "lambda:InvokeFunction" => "lambda:InvokeFunction"
22 function_name: "github-status_github-status" => "github-status_github-status"
23 principal: "apigateway.amazonaws.com" => "apigateway.amazonaws.com"
24 source_arn: "arn:aws:execute-api:ap-northeast-1:410000000000:1w03z7dzmi/test/POST/check" => "${aws_api_gateway_deployment.status_api_test.execution_arn}/${aws_api_gateway_integration.status_api_resource_check_post.integration_http_method}${aws_api_gateway_resource.status_api_resource_check.path}" (forces new resource)
25 statement_id: "AllowInvokeFromAPIGateway" => "AllowInvokeFromAPIGateway"
26
27
28Plan: 3 to add, 0 to change, 2 to destroy.
이를 적용하고 CloudWatch 로그에 가면 다음과 같은 로그를 볼 수 있다.
117:50:30 Verifying Usage Plan for request: a9951f1b-334d-11e7-8a79-7fd16e045aa1. API Key: API Stage: 1w03z7dzmi/test
217:50:30 API Key authorized because method 'POST /check' does not require API Key. Request will not contribute to throttle or quota limits
317:50:30 Usage Plan check succeeded for API Key and API Stage 1w03z7dzmi/test
417:50:30 Starting execution for request: a9951f1b-334d-11e7-8a79-7fd16e045aa1
517:50:30 HTTP Method: POST, Resource Path: /check
617:50:31 Execution failed due to configuration error: No match for output mapping and no default output mapping configured
717:50:31 Method completed with status: 500
위에서 Internal server error 오류가 발생한 이유가 기본 output mapping이 설정되지 않았기 때문임을 알 수 있다. Lambda 자체의 오류가 아니라면 API Gateway에서 제공하는 테스트 기능으로 확인하거나 이 로그를 키고 확인해야 한다.
출력 매핑 추가

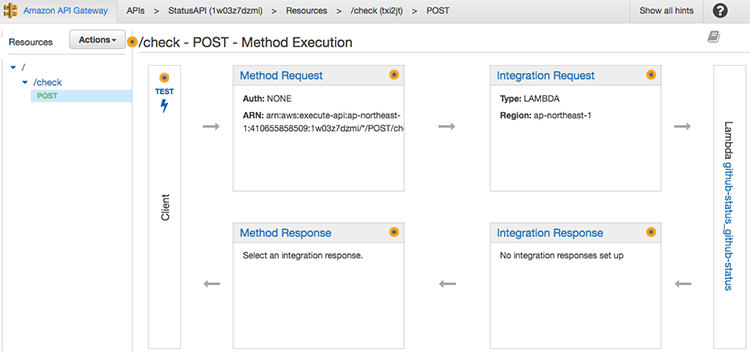

여기서 출력 매핑이란 것은 HTTP API에 응답을 결정하는 역할을 하로 아래 API 화면에서 Method Response와 Integration Response를 의미한다.
HTTP로 200을 줄 수도 있고 201이나 400, 404등 다양한 응답을 줄 수 있으므로 매핑 조건에 따라 어떤 응답을 줄지를 결정할 수 있다. 좀 더 설명하면 Lambda의 결과를 받아서 상태 코드와 함께 응답 데이터 형식을 결정해서 반환할 수 있다.
여기서는 일단 기본 응답인 200 OK를 추가해 보자.
1// infrastructure/github-status.tf
2
3// 200 응답 매핑
4resource "aws_api_gateway_method_response" "status_api_resource_check_post_200" {
5 rest_api_id = "${aws_api_gateway_rest_api.status_api.id}"
6 resource_id = "${aws_api_gateway_resource.status_api_resource_check.id}"
7 http_method = "${aws_api_gateway_method.status_api_resource_check_post.http_method}"
8 status_code = "200"
9 response_models = {
10 "application/json" = "Empty"
11 }
12}
13
14resource "aws_api_gateway_integration_response" "status_api_resource_check_post_200" {
15 rest_api_id = "${aws_api_gateway_rest_api.status_api.id}"
16 resource_id = "${aws_api_gateway_resource.status_api_resource_check.id}"
17 http_method = "${aws_api_gateway_method.status_api_resource_check_post.http_method}"
18 status_code = "${aws_api_gateway_method_response.status_api_resource_check_post_200.status_code}"
19
20 response_templates = {
21 "application/json" = ""
22 }
23}
일단 aws_api_gateway_method_response로 메서드의 응답을 하나 정의해야 한다. 여기서는 상태 코드를 200으로 정의했고 응답의 모델은 기본으로 만들어지는 Empty 모델을 application/json으로 응답하도록 정의했다. aws_api_gateway_integration_response에서는 Lambda와 응답을 통합하는 역할을 하는데 여기서 application/json 형식으로 응답하도록 정의했고 그 내용에는 아무것도 넣지 않았다.
1$ apex infra plan
2
3-/+ aws_api_gateway_deployment.status_api_test
4 created_date: "2017-05-07T17:59:46Z" => "<computed>"
5 description: "Deployed at 2017-05-07T17:59:45Z" => "Deployed at 2017-05-07T18:00:01Z"
6 execution_arn: "arn:aws:execute-api:ap-northeast-1:410000000000:1w03z7dzmi/test" => "<computed>"
7 invoke_url: "https://1w03z7dzmi.execute-api.ap-northeast-1.amazonaws.com/test" => "<computed>"
8 rest_api_id: "1w03z7dzmi" => "1w03z7dzmi"
9 stage_description: "2017-05-07T17:59:45Z" => "2017-05-07T18:00:01Z" (forces new resource)
10 stage_name: "test" => "test"
11
12+ aws_api_gateway_integration_response.status_api_resource_check_post_200
13 http_method: "POST"
14 resource_id: "txi2jt"
15 response_templates.%: "1"
16 response_templates.application/json: ""
17 rest_api_id: "1w03z7dzmi"
18 status_code: "200"
19
20+ aws_api_gateway_method_response.status_api_resource_check_post_200
21 http_method: "POST"
22 resource_id: "txi2jt"
23 response_models.%: "1"
24 response_models.application/json: "Empty"
25 rest_api_id: "1w03z7dzmi"
26 status_code: "200"
27
28
29Plan: 3 to add, 0 to change, 1 to destroy.
이를 적용한 뒤에 API를 다시 테스트하면 Lambda가 반환하는 결과가 200 OK로 반환된 것을 확인할 수 있다.
1$ curl -i \
2 -X POST https://1w03z7dzmi.execute-api.ap-northeast-1.amazonaws.com/test/check \
3 -d '{ "url": "https://status.github.com/api/last-message.json"}'
4HTTP/1.1 200 OK
5Content-Type: application/json
6Content-Length: 107
7Connection: keep-alive
8Date: Sun, 07 May 2017 18:04:37 GMT
9x-amzn-RequestId: a1f41398-334f-11e7-b887-d166a220b6ab
10X-Amzn-Trace-Id: sampled=0;root=1-590f61b5-8338679ddbc8cf6feeadade5
11X-Cache: Miss from cloudfront
12Via: 1.1 5d1ba4039f11e793a35923f543e4f02a.cloudfront.net (CloudFront)
13X-Amz-Cf-Id: Q4kIiAq7w8GK3SVVm3fmSmf3qzNlSZ-bsBElSl8rYzT7mGJi-HZXaA==
14
15"{\"status\":\"good\",\"body\":\"Everything operating normally.\",\"created_on\":\"2017-05-06T19:04:12Z\"}"
이제 정상적인 동작은 마무리되었다. 이 API에 인증은 추가하지 않았지만, 이는 여기서는 다루지 않는다.
예외 응답 추가
200 OK는 잘 반환하게 되었는데 HTTP API라면 요청 형식이 잘못되거나 Lambda에서 오류가 발생한 경우 4xx, 5xx 응답을 줄 수 있어야 한다. 이를 위해서 200 응답처럼 응답 매핑을 추가해야 한다.
1// infrastructure/github-status.tf
2
3// 400 응답 매핑
4resource "aws_api_gateway_method_response" "status_api_resource_check_post_400" {
5 rest_api_id = "${aws_api_gateway_rest_api.status_api.id}"
6 resource_id = "${aws_api_gateway_resource.status_api_resource_check.id}"
7 http_method = "${aws_api_gateway_method.status_api_resource_check_post.http_method}"
8 status_code = "400"
9 response_models = {
10 "application/json" = "Error"
11 }
12}
13
14resource "aws_api_gateway_integration_response" "status_api_resource_check_post_400" {
15 rest_api_id = "${aws_api_gateway_rest_api.status_api.id}"
16 resource_id = "${aws_api_gateway_resource.status_api_resource_check.id}"
17 http_method = "${aws_api_gateway_method.status_api_resource_check_post.http_method}"
18 status_code = "${aws_api_gateway_method_response.status_api_resource_check_post_400.status_code}"
19 selection_pattern = ".*BadRequest.*"
20 response_templates = {
21 "application/json" = <<EOF
22#set ($errorMessageObj = $util.parseJson($input.path('$.errorMessage')))
23
24{
25 "message": "$errorMessageObj.message",
26 "stack": "$errorMessageObj.stackTrace",
27 "requestId": "$errorMessageObj.requestId"
28}
29EOF
30 }
31}
32
33// 500 응답 매핑
34resource "aws_api_gateway_method_response" "status_api_resource_check_post_500" {
35 rest_api_id = "${aws_api_gateway_rest_api.status_api.id}"
36 resource_id = "${aws_api_gateway_resource.status_api_resource_check.id}"
37 http_method = "${aws_api_gateway_method.status_api_resource_check_post.http_method}"
38 status_code = "500"
39 response_models = {
40 "application/json" = "Error"
41 }
42}
43
44resource "aws_api_gateway_integration_response" "status_api_resource_check_post_500" {
45 rest_api_id = "${aws_api_gateway_rest_api.status_api.id}"
46 resource_id = "${aws_api_gateway_resource.status_api_resource_check.id}"
47 http_method = "${aws_api_gateway_method.status_api_resource_check_post.http_method}"
48 status_code = "${aws_api_gateway_method_response.status_api_resource_check_post_500.status_code}"
49 selection_pattern = ".*InternalServerError.*"
50 response_templates = {
51 "application/json" = <<EOF
52#set ($errorMessageObj = $util.parseJson($input.path('$.errorMessage')))
53
54{
55 "message": "$errorMessageObj.message",
56 "stack": "$errorMessageObj.stackTrace",
57 "requestId": "$errorMessageObj.requestId"
58}
59EOF
60 }
61}
앞에 200과 같이 400, 500 용으로 aws_api_gateway_method_response와 aws_api_gateway_integration_response를 선언했다. 200과 다른 부분은 selection_pattern = ".*\BadRequest\]*"부분인데 이는 Lambda에서 넘어온 응답의 패턴을 정규식으로 비교해서 매치되는 경우 기본 응답 대신 이 응답을 사용한다. 앞에 Lambda에서 요청 오류이면 [BadRequest]를, 다른 오류가 생기면 [InternalServerError] 오류 메시지에 추가한 것을 기억하는가? 여기서 이 메시지를 비교한 것이다. 앞에서도 설명했듯이 오류 객체 JSON을 문자열로 반환했으므로 전체가 문자열로 받게 되는데 여기서 정규식으로 원하는 부분을 비교해서 응답과 매칭시키면 된다.
response_templates에서는 application/json로 반환하는데 받은 객체를 그대로 주는 대신 응답 데이터를 구성했다. API Gateway에서 제공하는 유틸리티 함수가 있는데 $util.parseJson($input.path('$.errorMessage'))에서 Lambda에서 받은 $.errorMessage를 JSON으로 변환해서 $errorMessageObj로 할당했다. 그리고 이 객체를 이용해서 원하는 JSON을 새로 구성해서 응답하도록 설정했다.
1$ apex infra plan
2
3-/+ aws_api_gateway_deployment.status_api_test
4 created_date: "2017-05-07T18:00:26Z" => "<computed>"
5 description: "Deployed at 2017-05-07T18:00:25Z" => "Deployed at 2017-05-07T18:16:54Z"
6 execution_arn: "arn:aws:execute-api:ap-northeast-1:410000000000:1w03z7dzmi/test" => "<computed>"
7 invoke_url: "https://1w03z7dzmi.execute-api.ap-northeast-1.amazonaws.com/test" => "<computed>"
8 rest_api_id: "1w03z7dzmi" => "1w03z7dzmi"
9 stage_description: "2017-05-07T18:00:25Z" => "2017-05-07T18:16:54Z" (forces new resource)
10 stage_name: "test" => "test"
11
12+ aws_api_gateway_integration_response.status_api_resource_check_post_400
13 http_method: "POST"
14 resource_id: "txi2jt"
15 response_templates.%: "1"
16 response_templates.application/json: "#set ($errorMessageObj = $util.parseJson($input.path('$.errorMessage')))\n\n{\n \"message\": \"$errorMessageObj.message\",\n \"stack\": \"$errorMessageObj.stackTrace\",\n \"requestId\": \"$errorMessageObj.requestId\"\n}\n"
17 rest_api_id: "1w03z7dzmi"
18 selection_pattern: ".*BadRequest.*"
19 status_code: "400"
20
21+ aws_api_gateway_integration_response.status_api_resource_check_post_500
22 http_method: "POST"
23 resource_id: "txi2jt"
24 response_templates.%: "1"
25 response_templates.application/json: "#set ($errorMessageObj = $util.parseJson($input.path('$.errorMessage')))\n\n{\n \"message\": \"$errorMessageObj.message\",\n \"stack\": \"$errorMessageObj.stackTrace\",\n \"requestId\": \"$errorMessageObj.requestId\"\n}\n"
26 rest_api_id: "1w03z7dzmi"
27 selection_pattern: ".*InternalServerError.*"
28 status_code: "500"
29
30+ aws_api_gateway_method_response.status_api_resource_check_post_400
31 http_method: "POST"
32 resource_id: "txi2jt"
33 response_models.%: "1"
34 response_models.application/json: "Error"
35 rest_api_id: "1w03z7dzmi"
36 status_code: "400"
37
38+ aws_api_gateway_method_response.status_api_resource_check_post_500
39 http_method: "POST"
40 resource_id: "txi2jt"
41 response_models.%: "1"
42 response_models.application/json: "Error"
43 rest_api_id: "1w03z7dzmi"
44 status_code: "500"
45
46+ aws_api_gateway_method_settings.status_api_resource_check_post
47 method_path: "check/POST"
48 rest_api_id: "1w03z7dzmi"
49 settings.#: "1"
50 settings.0.logging_level: "INFO"
51 settings.0.metrics_enabled: "true"
52 stage_name: "test"
53
54
55Plan: 6 to add, 0 to change, 1 to destroy.
이를 적용하고 실제로 각 오류를 테스트해보자.
1$ curl -i \
2 -X POST https://1w03z7dzmi.execute-api.ap-northeast-1.amazonaws.com/test/check \
3 -d '{ }'
4HTTP/1.1 400 Bad Request
5Content-Type: application/json
6Content-Length: 234
7Connection: keep-alive
8Date: Sun, 07 May 2017 18:17:57 GMT
9x-amzn-RequestId: 7ef3703e-3351-11e7-9007-39d9f5af8bce
10X-Amzn-Trace-Id: sampled=0;root=1-590f64d5-c36878c3f02a3717ec66c3d3
11X-Cache: Error from cloudfront
12Via: 1.1 e16834aaac4fd814ae3edf9e633f4567.cloudfront.net (CloudFront)
13X-Amz-Cf-Id: GrkJP5YTUc1LfwQO6Sc4cimOzKVFFAXDfj3_chP7_PHCpJDjYyQBmw==
14
15
16{
17 "message": "[BadRequest] URL required",
18 "stack": "Error: [BadRequest] URL required
19 at ping (/var/task/index.js:6:25)
20 at exports.handle (/var/task/index.js:18:3)",
21 "requestId": "7ef40ba9-3351-11e7-b596-5dd2f1ad2723"
22}
요청에 url 속성을 전달하지 않으면 400 Bad Request가 반환된다.
1$ curl -i \
2 -X POST https://1w03z7dzmi.execute-api.ap-northeast-1.amazonaws.com/test/check \
3 -d '{ "url": "noturl" }'
4HTTP/1.1 500 Internal Server Error
5Content-Type: application/json
6Content-Length: 448
7Connection: keep-alive
8Date: Sun, 07 May 2017 18:18:12 GMT
9x-amzn-RequestId: 87efd9cd-3351-11e7-8a79-7fd16e045aa1
10X-Amzn-Trace-Id: sampled=0;root=1-590f64e4-033e3c311bef8a2e208d0a5f
11X-Cache: Error from cloudfront
12Via: 1.1 11a0261328fa2fb9ebe64a59fd132104.cloudfront.net (CloudFront)
13X-Amz-Cf-Id: rt2k9xQFGIxKQB1z4wuapWD5gasgBsR05V9APGlTLEyRGHlTs5Nh_g==
14
15
16{
17 "message": "[InternalServerError] Invalid URI "noturl"",
18 "stack": "Error: Invalid URI "noturl"
19 at Request.init (/var/task/node_modules/request/request.js:276:31)
20 at new Request (/var/task/node_modules/request/request.js:130:8)
21 at request (/var/task/node_modules/request/index.js:54:10)
22 at ping (/var/task/index.js:8:3)
23 at exports.handle (/var/task/index.js:18:3)",
24 "requestId": "87ef8bdc-3351-11e7-82ab-d92b9a17bfda"
25}
그리고 다른 오류가 발생하도록 url이 아닌 다른 문자열을 전달하자 500 오류가 정상적으로 반환되었다.
마무리
물론 API Gateway가 많은 기능을 제공하므로 제대로 사용하려면 이외에도 많은 설정이 필요하지만, 이 기본 골격과 각 리소스에 대한 이해를 하기 위해서 꽤 많은 시간을 소비했다. 이 구성이 가장 좋은 구성이라는 것은 아니지만, 이 기본 구조를 찬찬히 살펴보면 각 리소스를 정의해서 사용하는 방법을 이해할 수 있다고 생각한다. 물론 API Gateway도 Terraform도 계속 발전하고 있으므로 변경사항에 대한 추적도 필요하긴 하다.
다음은 infrastructure/github-status.tf 파일의 전체 내용이다.
1// API 정의
2resource "aws_api_gateway_rest_api" "status_api" {
3 name = "StatusAPI"
4 description = "상태를 조회하는 API"
5}
6
7// API 리소스 정의 (/check 같은 경로)
8resource "aws_api_gateway_resource" "status_api_resource_check" {
9 rest_api_id = "${aws_api_gateway_rest_api.status_api.id}"
10 parent_id = "${aws_api_gateway_rest_api.status_api.root_resource_id}"
11 path_part = "check"
12}
13
14// API 리소스의 메서드 정의 (GET, POST 등)
15resource "aws_api_gateway_method" "status_api_resource_check_post" {
16 rest_api_id = "${aws_api_gateway_rest_api.status_api.id}"
17 resource_id = "${aws_api_gateway_resource.status_api_resource_check.id}"
18 http_method = "POST"
19 authorization = "NONE"
20}
21
22// API와 Lambda 통합
23resource "aws_api_gateway_integration" "status_api_resource_check_post" {
24 rest_api_id = "${aws_api_gateway_rest_api.status_api.id}"
25 resource_id = "${aws_api_gateway_resource.status_api_resource_check.id}"
26 http_method = "${aws_api_gateway_method.status_api_resource_check_post.http_method}"
27 type = "AWS"
28 integration_http_method = "POST"
29 uri = "arn:aws:apigateway:${var.aws_region}:lambda:path/2015-03-31/functions/${var.apex_function_github-status}/invocations"
30}
31
32// API 배포
33resource "aws_api_gateway_deployment" "status_api_test" {
34 depends_on = ["aws_api_gateway_integration.status_api_resource_check_post"]
35 rest_api_id = "${aws_api_gateway_rest_api.status_api.id}"
36 stage_name = "test"
37 stage_description = "${timestamp()}"
38 description = "Deployed at ${timestamp()}"
39}
40
41// Lambda에 호출할 권리
42resource "aws_lambda_permission" "status_api_resource_check_post" {
43 statement_id = "AllowInvokeFromAPIGateway"
44 action = "lambda:InvokeFunction"
45 function_name = "${var.apex_function_github-status_name}"
46 principal = "apigateway.amazonaws.com"
47 source_arn = "${aws_api_gateway_deployment.status_api_test.execution_arn}/${aws_api_gateway_integration.status_api_resource_check_post.integration_http_method}${aws_api_gateway_resource.status_api_resource_check.path}"
48}
49
50// API 메서드 설정
51resource "aws_api_gateway_method_settings" "status_api_resource_check_post" {
52 rest_api_id = "${aws_api_gateway_rest_api.status_api.id}"
53 stage_name = "${aws_api_gateway_deployment.status_api_test.stage_name}"
54 method_path = "${aws_api_gateway_resource.status_api_resource_check.path_part}/${aws_api_gateway_method.status_api_resource_check_post.http_method}"
55
56 settings {
57 metrics_enabled = true
58 logging_level = "INFO"
59 }
60}
61
62// 200 응답 매핑
63resource "aws_api_gateway_method_response" "status_api_resource_check_post_200" {
64 rest_api_id = "${aws_api_gateway_rest_api.status_api.id}"
65 resource_id = "${aws_api_gateway_resource.status_api_resource_check.id}"
66 http_method = "${aws_api_gateway_method.status_api_resource_check_post.http_method}"
67 status_code = "200"
68 response_models = {
69 "application/json" = "Empty"
70 }
71}
72
73resource "aws_api_gateway_integration_response" "status_api_resource_check_post_200" {
74 rest_api_id = "${aws_api_gateway_rest_api.status_api.id}"
75 resource_id = "${aws_api_gateway_resource.status_api_resource_check.id}"
76 http_method = "${aws_api_gateway_method.status_api_resource_check_post.http_method}"
77 status_code = "${aws_api_gateway_method_response.status_api_resource_check_post_200.status_code}"
78
79 response_templates = {
80 "application/json" = ""
81 }
82}
83
84// 400 응답 매핑
85resource "aws_api_gateway_method_response" "status_api_resource_check_post_400" {
86 rest_api_id = "${aws_api_gateway_rest_api.status_api.id}"
87 resource_id = "${aws_api_gateway_resource.status_api_resource_check.id}"
88 http_method = "${aws_api_gateway_method.status_api_resource_check_post.http_method}"
89 status_code = "400"
90 response_models = {
91 "application/json" = "Error"
92 }
93}
94
95resource "aws_api_gateway_integration_response" "status_api_resource_check_post_400" {
96 rest_api_id = "${aws_api_gateway_rest_api.status_api.id}"
97 resource_id = "${aws_api_gateway_resource.status_api_resource_check.id}"
98 http_method = "${aws_api_gateway_method.status_api_resource_check_post.http_method}"
99 status_code = "${aws_api_gateway_method_response.status_api_resource_check_post_400.status_code}"
100 selection_pattern = ".*BadRequest.*"
101 response_templates = {
102 "application/json" = <<EOF
103#set ($errorMessageObj = $util.parseJson($input.path('$.errorMessage')))
104
105{
106 "message": "$errorMessageObj.message",
107 "stack": "$errorMessageObj.stackTrace",
108 "requestId": "$errorMessageObj.requestId"
109}
110EOF
111 }
112}
113
114// 500 응답 매핑
115resource "aws_api_gateway_method_response" "status_api_resource_check_post_500" {
116 rest_api_id = "${aws_api_gateway_rest_api.status_api.id}"
117 resource_id = "${aws_api_gateway_resource.status_api_resource_check.id}"
118 http_method = "${aws_api_gateway_method.status_api_resource_check_post.http_method}"
119 status_code = "500"
120 response_models = {
121 "application/json" = "Error"
122 }
123}
124
125resource "aws_api_gateway_integration_response" "status_api_resource_check_post_500" {
126 rest_api_id = "${aws_api_gateway_rest_api.status_api.id}"
127 resource_id = "${aws_api_gateway_resource.status_api_resource_check.id}"
128 http_method = "${aws_api_gateway_method.status_api_resource_check_post.http_method}"
129 status_code = "${aws_api_gateway_method_response.status_api_resource_check_post_500.status_code}"
130 selection_pattern = ".*InternalServerError.*"
131 response_templates = {
132 "application/json" = <<EOF
133#set ($errorMessageObj = $util.parseJson($input.path('$.errorMessage')))
134
135{
136 "message": "$errorMessageObj.message",
137 "stack": "$errorMessageObj.stackTrace",
138 "requestId": "$errorMessageObj.requestId"
139}
140EOF
141 }
142}
저도 apex사용하면서 terraform도 같이 설정해서 배포하고 관리하는 것에 대해서 학습을 하고 있는 중인데 정훈님이 올려 주신 글이 도움이 많이 되네요. 감사합니다~.
잘 지내시죠? ㅎㅎ Terraform은 완전히 다른 도구라서 apex만 처음 쓸때 어렵긴 하더라고요.
